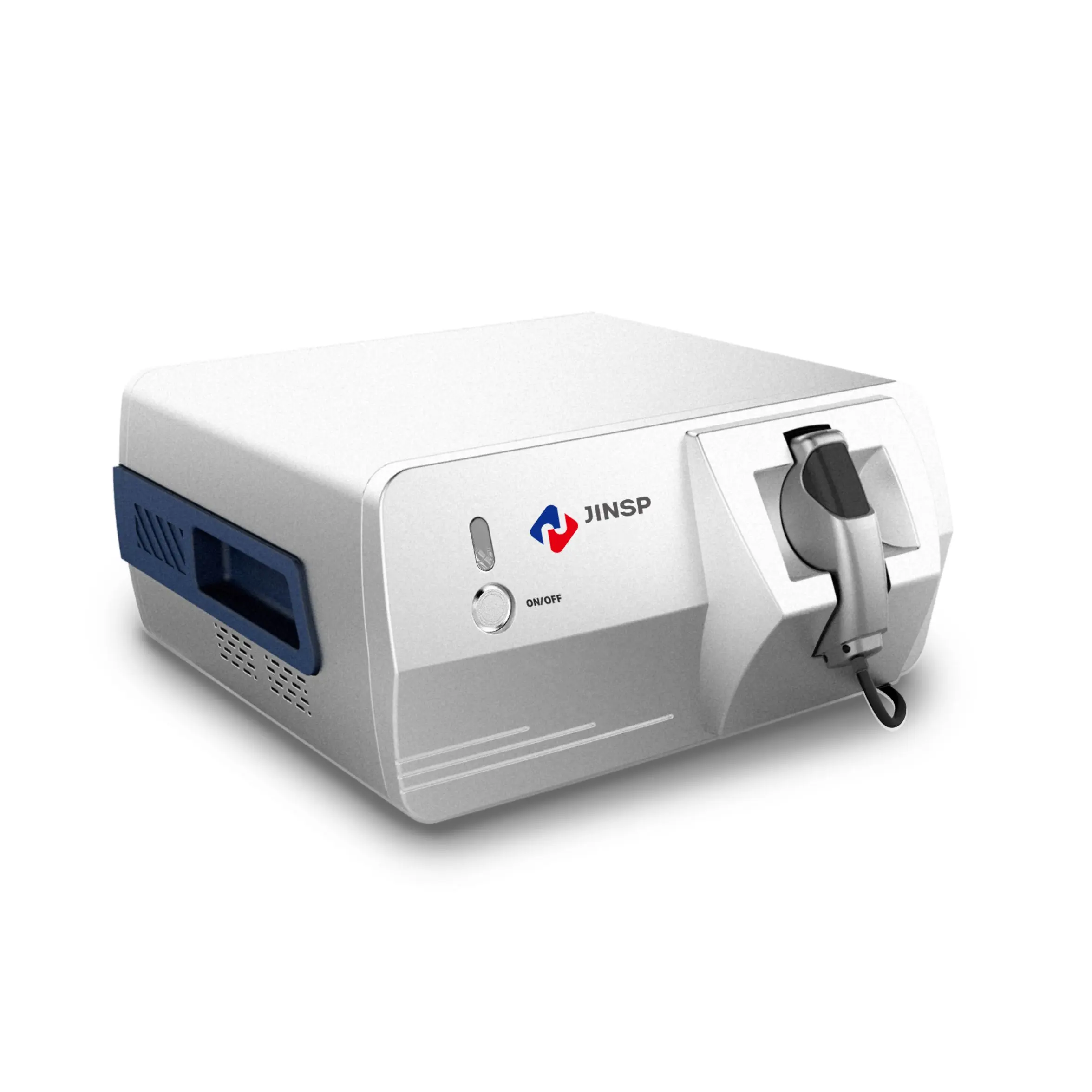

RS2000LAB/RS2100LAB Portable Raman Spectrometer

JINSP® RS2000LAB/RS2100 portable Raman spectrometer is a high-performance analytical instrument, which supports fast, non-destructive, qualitative, and quantitative analysis of chemicals, with high sensitivity, high SNR and wide spectral coverage.

RS2000LAB can be configured with different excitation wavelengths depending on the specific analysis requirements (optional 4 channels at most). Different types of test accessories and sample holders can be employed to satisfy detection requirements in the fields such as pharmaceutical research, biomedicine, chemical analysis, material research, etc.

Benefit Highlights

• High light efficiency: Transmission spectrometer as the core

• Multi-channel capability: Optional four channels at most with a cost effective performance

• High sensitivity: Deeply cooled detector with high sensitivity, high SNR, etc.

• Flexible application: Raman microanalysis available with a microscope

• Powerful software functions: Data acquisition, spectrum smoothing, noise reduction, spectrum subtraction, data comparison, establishment of quantitative analytical methods, etc.

• Multi-function detection accessories: With accessories including solid cap, liquid cap, light-proof sample measuring cell, etc., RS2000LAB can be used to analyze solid, powder, or liquid samples.

Applications

1. Material analysis

2. R&D analysis of drugs

3. Crystal form research

4. Identification of cultural relics and jewellery

5. Food and drug safety analysis

Excitation wavelength	785 nm (RS2000LAB) or 1064 nm (RS2100LAB)
Laser power	0 ~ 500 mW, continuously adjustable power
Spectral coverage	200 ~ 2600 cm-1(RS2000LAB) or 200 ~ 1900 cm-1 ((RS2100LAB)
Spectral resolution	≤ 6 cm-1 (RS2000LAB) or ≤ 9 cm-1 ((RS2100LAB)
Unit weight	≤ 10 kg
Wavelength stability	≤ 0.01 nm
Detector	Common or deeply cooled
Spectrometer	Transmission spectrometer
Standard accessories	Solid cap, liquid cap, and light-proof sample measuring cell
Optional accessories	Microscope, and mechanically adjustable platform
Software functions	Data acquisition, spectrum data processing, spectrum comparison and equipment calibration
Temperature	Operating temperature: 0 ~ 40 ºC; Storage temperature: –20 ~ 55 ºC
Data output format	spc, txt, prn, etc.
Power supply	100 ~ 240 VAC, 50 ~ 60 Hz
