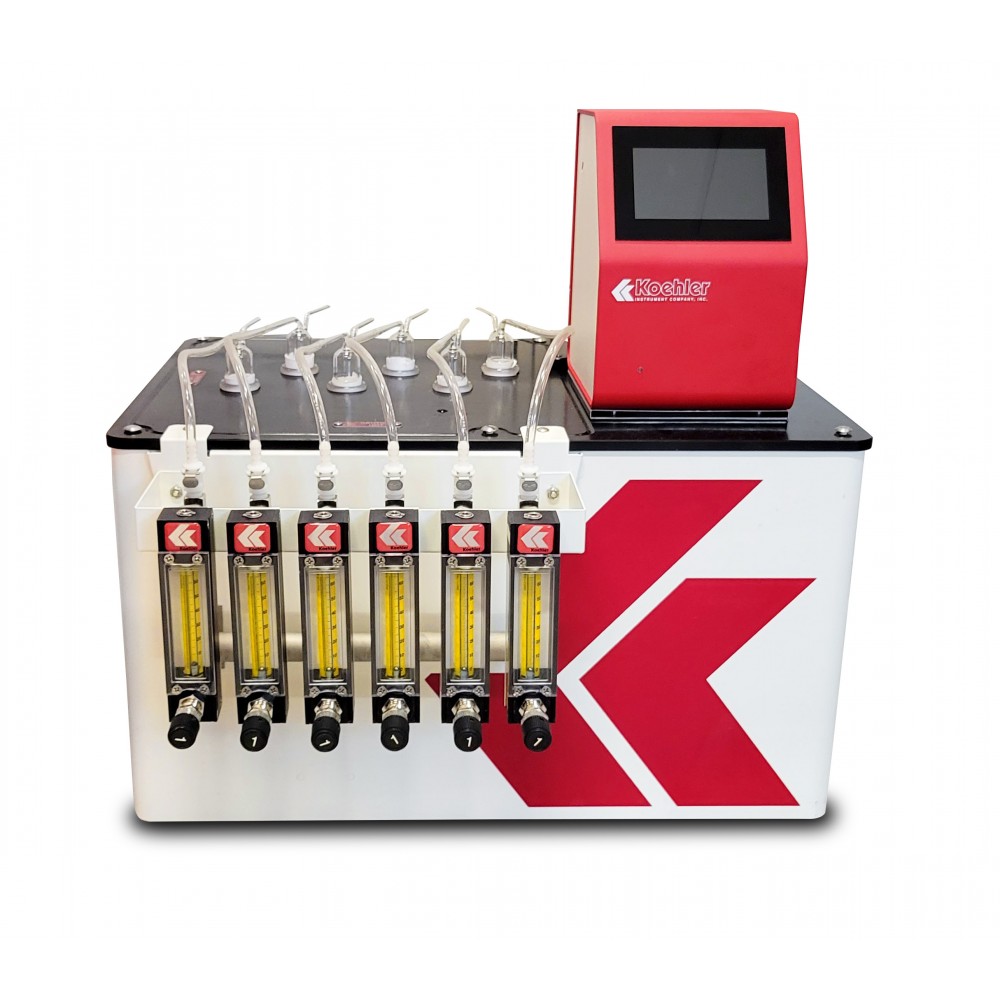

Constant temperature oil bath for testing oxidation stability of mineral insulating oils. Immerses six oil receptacles at the required depth per ASTM specifications at 110°C ± 0.5°C, and controls oxygen flow to each sample at the rate of 1L/h ± 0.1L/h through six independent flowmeters mounted on a common manifold. Insulated double-wall stainless steel bath has microprocessor temperature control with °C/°F switchable digital setpoint and display. Operator and equipment are protected by an overtemperature control circuit which automatically interrupts power to the unit when bath temperature exceeds a programmed cut-off point. Order bath thermometer drying tower and catalyst separately.
Features
-
- Conforms to ASTM D2440 and related specifications
- Capacity for 6 samples
- Digital temperature control with digital display and over-temperature cut-off
Test Method
Determines oxidation stability of mineral transformer oils by measuring the amount of sludge and acid formed under prescribed accelerated aging conditions
Electrical Requirements
K64100:Â 115V 60Hz, Single Phase, 10A
K64190:Â 220-240V 50/60Hz, Single Phase, 5A
