| Languages | English, Spanish, French, German, Italian, Chinese, Czech, Russian, Polish, Thai, Korean and Brazilian Portuguese |
|---|---|

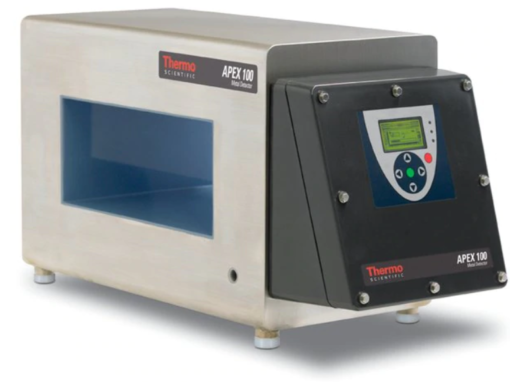

| Description | APEX 100 Metal Detector |
| Aperture Size | Width: 50 to 1750 mm, Height: 50 to 600 mm (Not all combinations possible; contact Thermo Fisher Scientific for details.) |
| Certifications/Compliance | cCSAus, CE, ATEX zone 22, ISO9001 certified |
| Communications | Optional modbus serial or ethernet modules |
| Construction | Stainless steel 304 straightlined case and ABS plastic front panel |
| Electronic Supply | 85 volts to 260 volts AC single phase plus earth ground; 47 Hz to 65 Hz, 100 watts maximum |
| Input Types | 6 Inputs – Active 12VDC and auxiliary supply for input sensors, NPN sinking |
| Operating Temperature |
Ambient Temperature -10° to 40° C (14° to 104° F)
Product Temperature in Aperture -10° to 55° C (14° to 131° F) Maximum Washdown Temperature 80° C (176° F) |
| Output Types | 6 Relay outputs; Relays: 250 volt AC 2 amp max. 50 volt DC 1 amp max |
| Product Speed | 0.5 m/min (1.7 ft/min) to 1000 m/min (3,300 ft/min |
| Protection | IP 69K |
| Relative Humidity | 20 – 80% non-condensing |
| Input Allocation | Speed Sensor, Keylock, Product Select 1, Product Select 2, Infeed PEC, Reject Confirmation 1 and Bin Full, External Supression, External Alarm, External Reset |
| Output Allocation | Reject 1, Reject 2, Fault, Alarm, Warning, QA Lamp |
| Unit Size | – |
The APEX 100 Entry Level Metal Detector Features:
- Sensitivity levels equal to the Thermo Scientific™ DSP3 and Thermo Scientific™ Metal Eliminator detectors
- Remote monitoring and control using Modbus™ protocol
- Dual frequency for improved application flexibility
- Compact and robust mechanical design for easy installation
- Sanitary, blue, hermetic epoxy aperture lining to improve ease of use
- Dent- and shock-resistant ABS plastic control panel with straight-lined, stainless-steel 304 case
- Solid-state, touch operation control panel with icon-driven interface and multilingual Help and Autocalibrate functions
Note: Meets all IP65, Nema 4 and ATEX zone 22 environmental requirements
